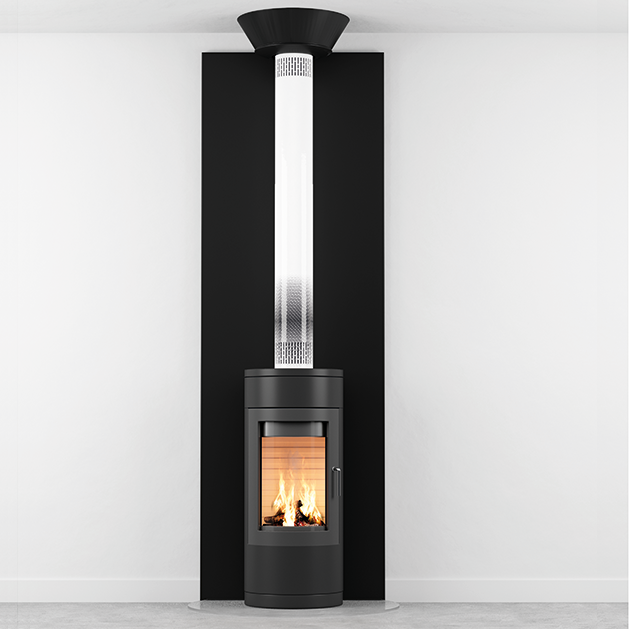

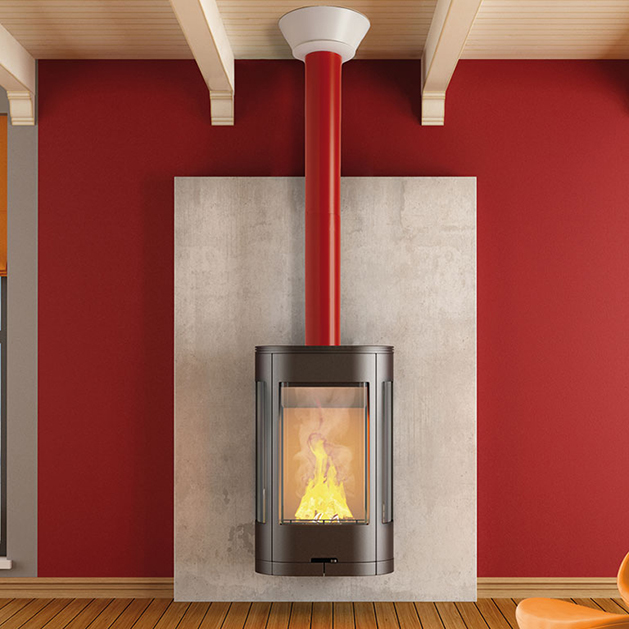

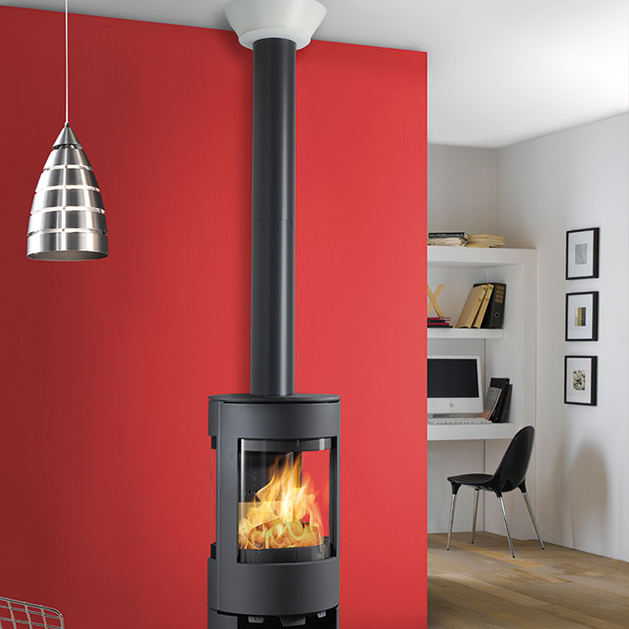

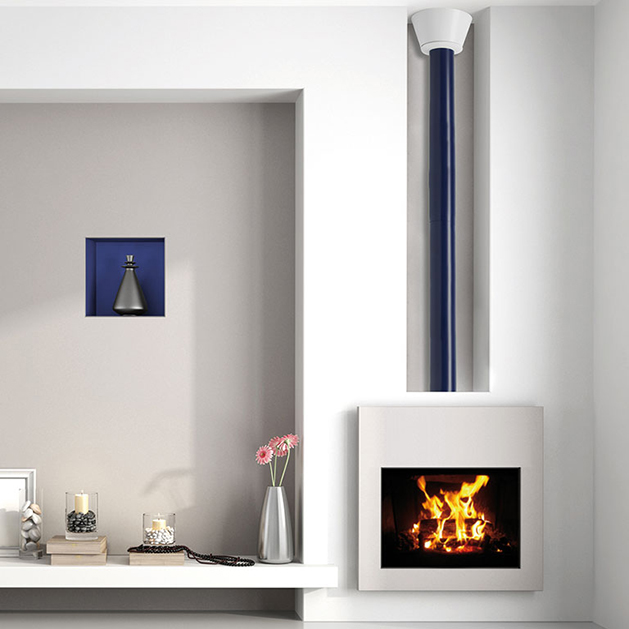

Design Up Ventilated Cover Pipe

Heat shield for connecting flue pipes

Our newly designed Ventilated Cover Pipes allow a reduced clearance from combustible material of only one diameter away from the pipe.

Adjustable in height, the ventilated cover pipe consists of two painted sliding elements. It is easily positioned around the Enamel Premium or Startinox connecting flue pipe without first dismantling the connection pipe.

Available in 3 decorative versions and 9 plain colours, the ventilated cover pipe can be combined with other decorative finishing plates for the ultimate in-room feature.

The system's top and bottom ventilation system reduces the overall temperature of the connecting flue pipe, thus ensuring additional safety if you should come into contact with it.





Product details

Personalise and Protect

> Makes it possible to  reduce the safety distance to 1 times the diameter of the pipe, against 3 times for an uncovered pipe.

> Offers a pleasing aesthetic appearance which can be further enhanced with Poujoulat wall plates.

> Easy to install and adjust and can be fitted retrospectively.




Complete range of ancillaries available:

Air-vent, fire-cement, fire rope, smoke pellet, mastic, sealant, CO alarm, paint, insulation bag, thermometer, moisture meter, clay pot and more.

All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet the highest standards (Building Regulation Document J - Amendments to Approved Documents).





1CREATE a COMPLETE LoOK

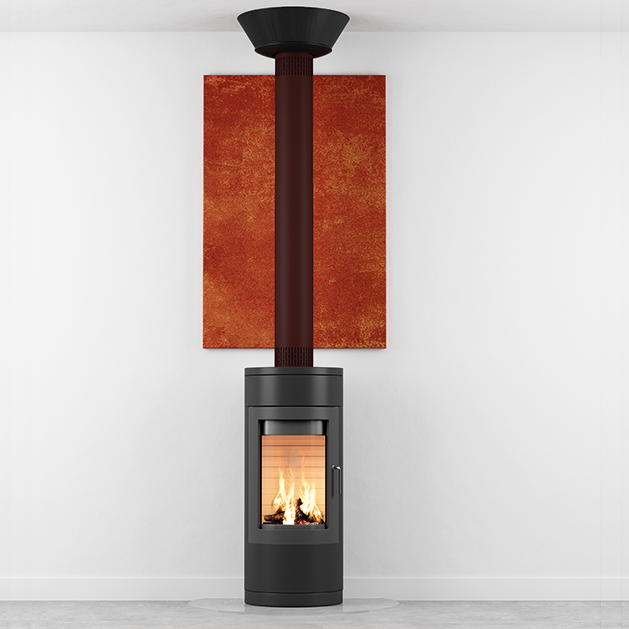

Industrial style ventilated wall plate and trim
Nature style wall finishing plate and ventilated cladding

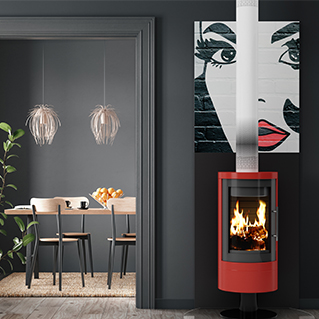

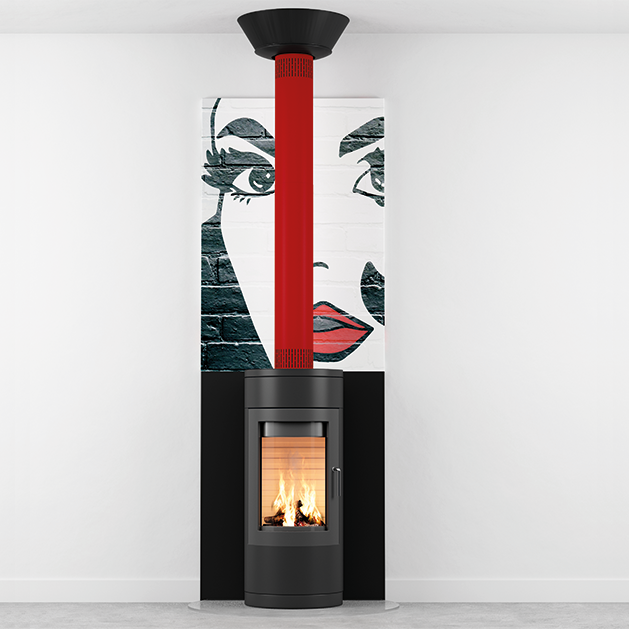

Pop'art style wall finishing plate and ventilated cladding



2OR CREATE YOUR OWN DESIGN

Choose one of the following 4 wall finishing plates:

Pop'art style wall finishing plate
POP'ART
(RAL 9010 - White)

Industrial style wall plate
INDUSUSTRIAL
(RAL 2001 - Red/Orange)

Nature style wall finishing plate
NATURE
(RAL 5021 - Water blue)

39 / 5,000 Translation results Black style wall cover plate
BLACK



And combine it with a DESIGN'UP Colour or Deco ventilated cladding to dress up your fireplace:

DESIGN'UP Sapphire Blue ventilated cover
SAPPHIRE BLUE
DESIGN'UP ventilated cladding Earth brown
EARTH BROWN
DESIGN'UP ventilated cladding chocolate brown
CHOCOLATE BROWN
DESIGN'UP ventilated cladding matt black
MATT BLACK
DESIGN'UP ventilated cladding mouse grey
MOUSE GREY
DESIGN'UP ventilated cladding slate grey
SLATE GREY
DESIGN'UP ventilated cladding flame red
FLAME RED
DESIGN'UP ventilated cladding burnt red
BURNT RED
DESIGN'UP ventilated cladding moss green
MOSS GREEN
Ventilated cover DESIGN'UP Nature
NATURE
Ventilated cover DESIGN'UP Industrial
INDUSTRIAL
Ventilated cover DESIGN'UP Pop'art
POP'ART



Technical data

> Achieve a clearance of 1 diameter away from combustible materials.
>Tested to EN1856.

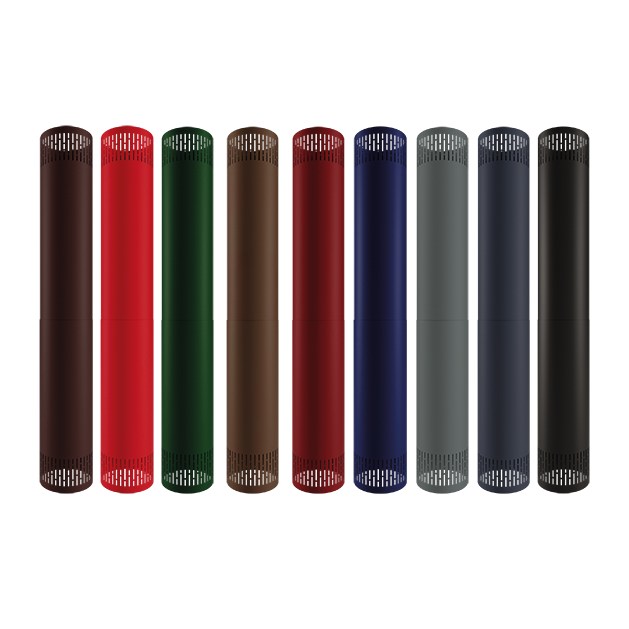

9 alternatives colours & 3 decorative designs

Installation & regulation

Regulation

The stove is installed with a clearance to combustible materials dictated by the appliance manufacturer.

When this results in the flue pipe being less than the 3 x diameter normal clearance to combustibles, the Ventilated Cover Pipe is the solution, reducing the clearance to the flue pipe to just 1 x diameter distance to combustible materials, and lowering the surface temperature making it safer for families.
